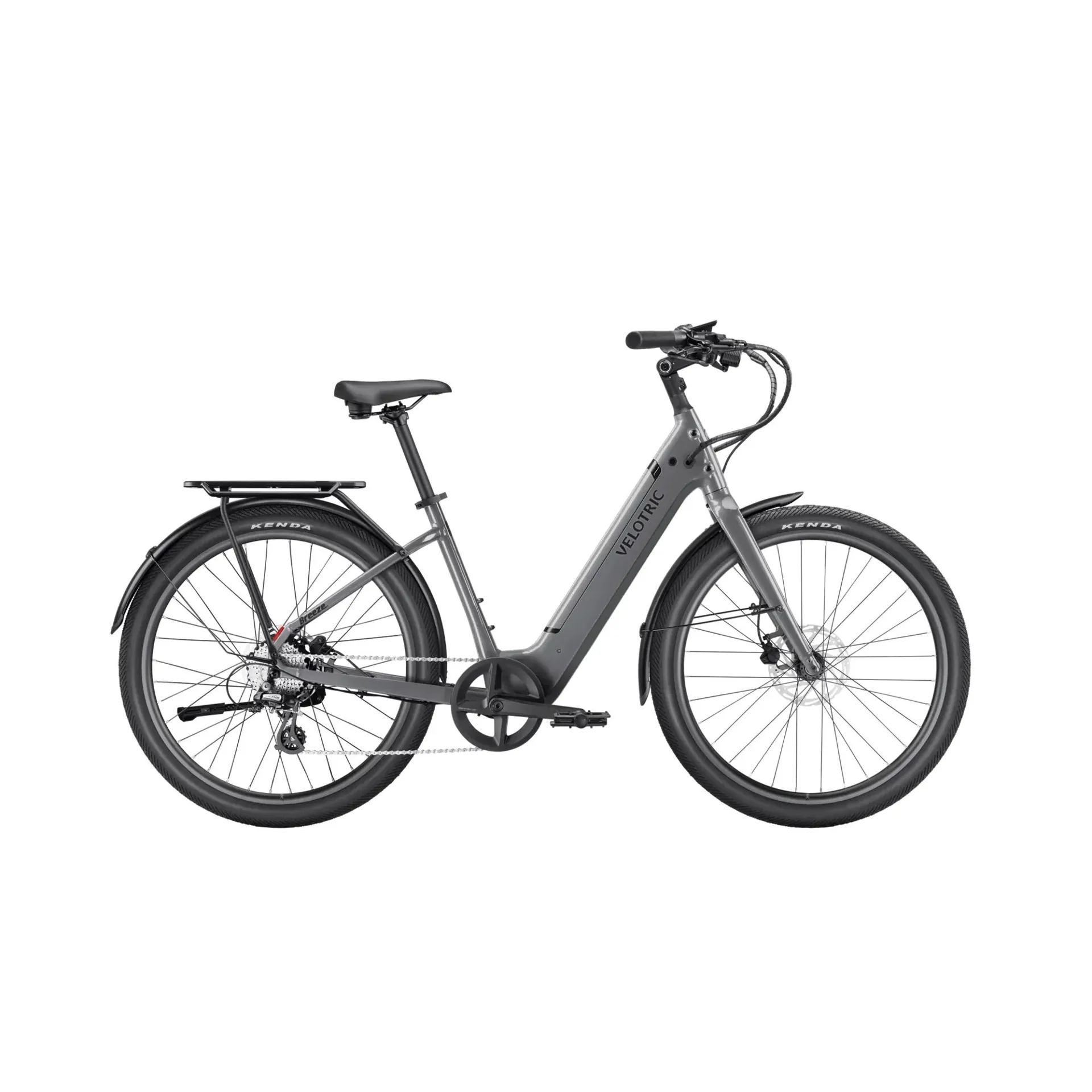

VELOTRIC BREEZE 1 | TECHNICAL SPECIFICATIONS
SIZE GUIDE
Available Sizes: Regular / Large
Recommended Rider Height:
Regular: 4'11" – 5'8"
Large: 5'6" – 6'4"
FRAME & FORK
Frame: Triple-butted aluminum alloy
Frame Style: Low step-through cruiser
Fork: Rigid aluminum alloy
MOTOR, BATTERY & ELECTRONICS
Motor: 750W rear hub motor, 900W peak power, 65Nm torque
Battery: Removable 48V, 13.4Ah (627Wh), IPX7 water resistance, UL 2271 certified
Battery Cells: 18650 cells, UL 2580 certified
Charger: 48V, 3.0A fast charger
Charging Time: Approximately 4–6 hours
Display: 3.5" full-color, high-brightness display with Bluetooth
Pedal Sensors: SensorSwap™ technology, selectable torque or cadence sensing
Pedal Assist: 3 riding modes with 5 assistance levels each
Throttle: Removable trigger-style throttle
USB Port: USB-C phone charging
Smartphone Connectivity: Velotric app with over-the-air firmware updates
Bike Location: Apple Find My compatibility
Headlight: Integrated 400-lumen LED, adjustable angle
Rear Light: Integrated brake light and turn signals
Water Resistance: IPX6 bike; IPX7 battery
SPEED & RANGE
Factory Default Speed: 20 mph
Adjustable Maximum Speed: 12–28 mph
E-Bike Classification: Configurable Class 1, 2, or 3
Maximum Pedal Assist Range: Up to 70 miles
Maximum Throttle Range: Up to 55 miles
Range Testing Conditions: 187 lb rider, PAS 1, Eco mode, flat roads
Actual range varies with terrain, rider weight, wind, tire pressure, speed, and assistance level.
DRIVETRAIN
Chainring: 46T narrow-wide
Crankset: 170mm aluminum alloy
Freewheel: 8-speed, 11–32T
Rear Derailleur: Shimano 8-speed
Shifter: Shimano 8-speed
Chain: KMC 8-speed
BRAKES & WHEELS
Brakes: Tektro hydraulic disc brakes
Brake Rotors: 180mm front and rear
Brake Levers: Aluminum alloy with motor power cutoff
Rims: Double-wall aluminum alloy
Front Hub: Novatec aluminum alloy, 15 x 110mm thru-axle
Tires: Kenda 27.5" x 2.2" puncture-resistant e-bike tires
COCKPIT & COMFORT
Handlebar: Aluminum alloy, 31.8mm clamp diameter
Regular: 660mm wide
Large: 680mm wide
Grips: Lockable ergonomic grips
Stem: Adjustable aluminum alloy
Saddle: Velotric Comfort ergonomic saddle
Seatpost: Aluminum alloy, 30.9mm diameter, 350mm length
Seatpost Clamp: Quick-release aluminum alloy
Riding Position: Upright cruiser geometry
ACCESSORIES & SUPPORTS
Fenders: Optional front and rear full-coverage fenders
Rear Rack: Optional MIK HD-compatible aluminum alloy rack
Pedals: Plastic
Kickstand: Included, rear-mounted aluminum alloy
Compatible Accessories: Front basket, rear rack, fenders, suspension seatpost, phone holders, and water bottle accessories
WEIGHT & CAPACITY
Bike Weight: 48 lbs
Bike Weight Without Battery: 40.8 lbs
Maximum Load Capacity: 330 lbs (rider and cargo combined)
Rear Rack Load Capacity: 66 lbs
SAFETY & CERTIFICATIONS
Electrical System Certification: UL 2849
Battery Certification: UL 2271
Battery Cell Certification: UL 2580
Bicycle Safety Standard: ISO 4210
Manufacturer Warranty: 2-year limited warranty
FRAME GEOMETRY
| Measurement | Regular | Large |
|---|
| Recommended Rider Height | 4'11"–5'8" | 5'6"–6'4" |
| Reach | 398mm | 404mm |
| Handlebar Height | 1,050mm | 1,070mm |
| Wheelbase | 1,143mm | 1,147mm |
| Stand-Over Height | 380mm | 380mm |
| Minimum Saddle Height | 745mm | 810mm |
| Maximum Saddle Height | 945mm | 1,015mm |
Specifications are based on Velotric's published product information and are subject to change. Optional accessories may be sold separately.
