The upgraded Troxus Explorer Plus step-thru electric bike is the ultimate daily commuter and weekend adventure companion, built with wide fat tires for stability.
The upgraded Troxus Explorer Plus step-thru electric bike is the ultimate daily commuter and weekend adventure companion, built with wide fat tires for stability.
Troxus

Troxus Explorer Plus Step-Thru MIK E-Bike Medium in Matte Black

$2,499.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Troxus Explorer Plus Step-Thru MIK E-Bike Medium in Matte Black

Brand:Troxus

Code:10870100334

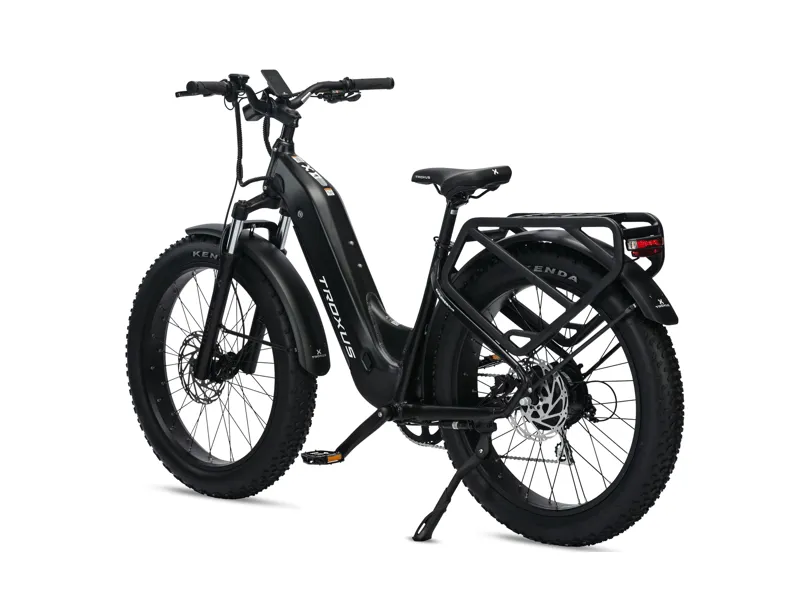

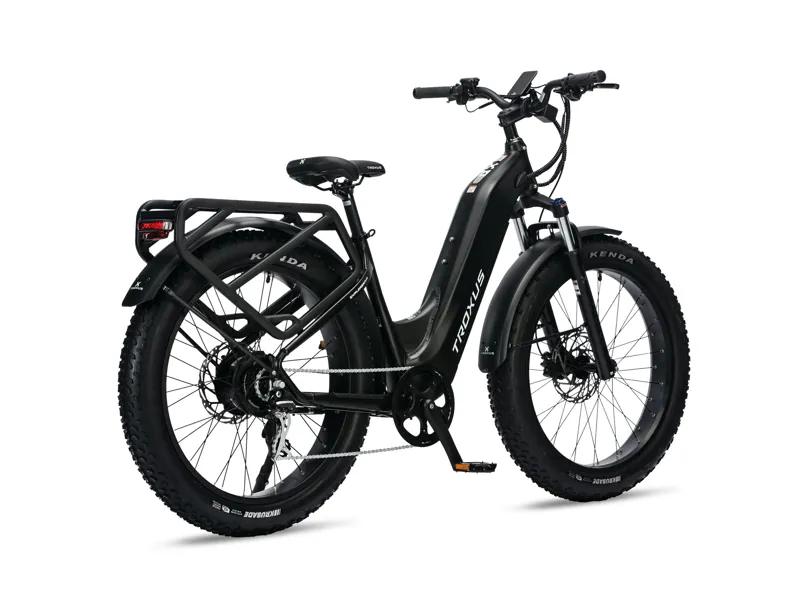

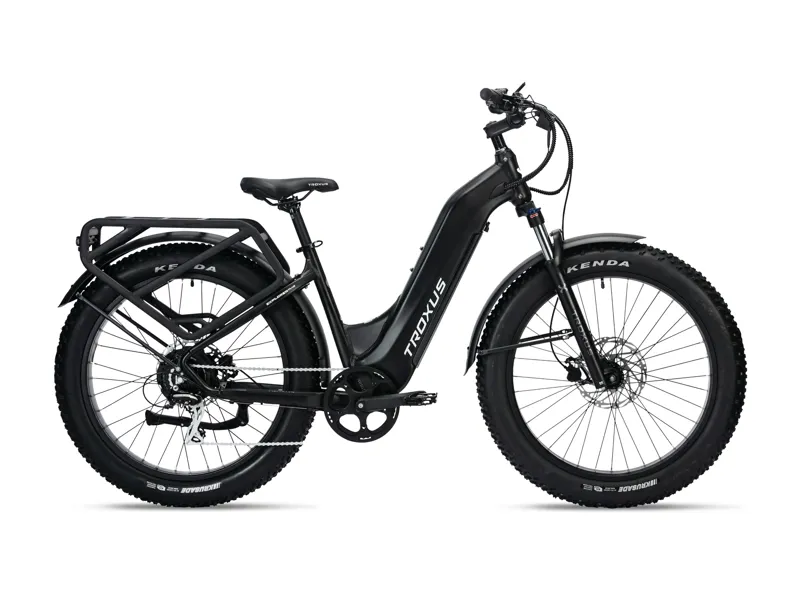

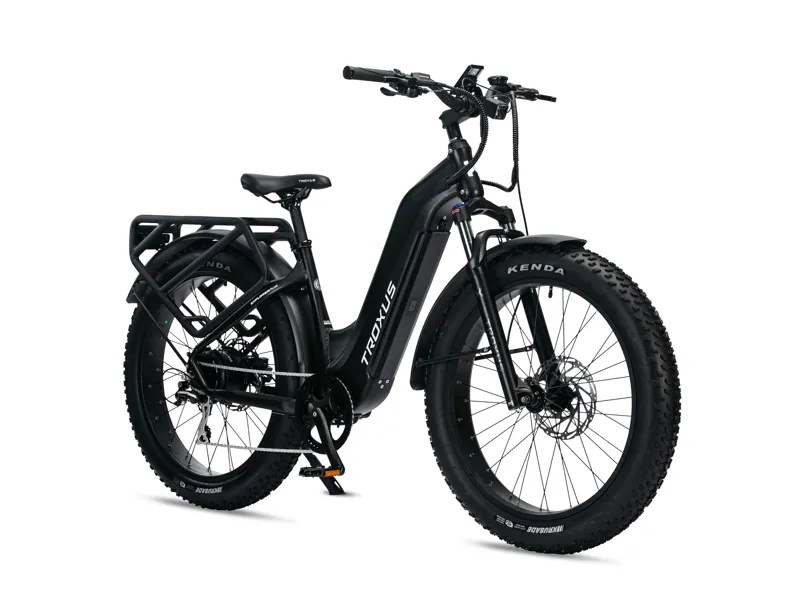

The upgraded Troxus Explorer Plus step-thru electric bike is the ultimate daily commuter and weekend adventure companion.

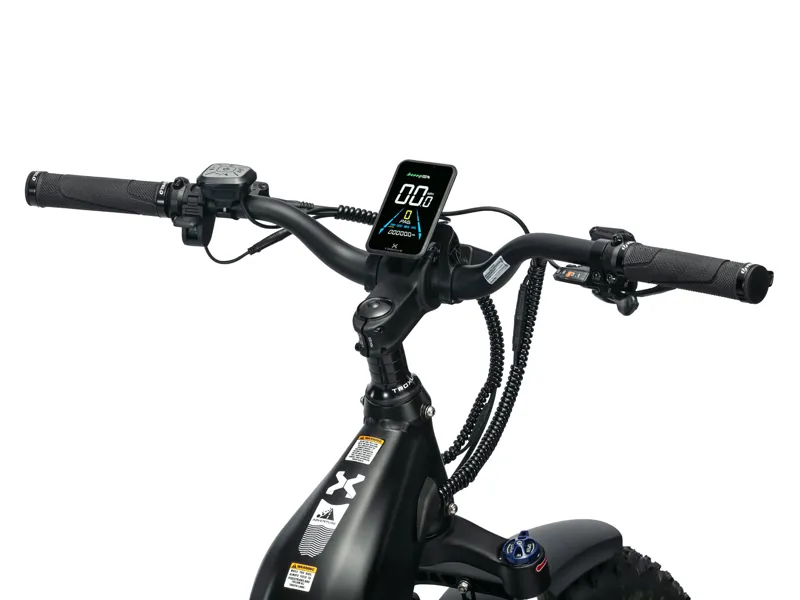

Built with wide fat tires for stability and comfort, this versatile fat tire electric bike handles city streets and off-road trails with ease. A new color screen allows easy access to all ride data, while the option to select between cadence or torque sensors lets you fine-tune your riding experience. The upgraded lighting system is brighter, featuring rear turn signals and a daytime flashing mode for enhanced safety and visibility.

The Bafang® 750 Watt hub-drive motor with 86Nm torque and a long-range 960Wh 20Ah battery gives the power and endurance needed for epic adventures. Built with a stable frame and thoughtful geometry, this step-thru design ensures easy mounting and dismounting while tackling varied routes.

Wide 66cm x 10cm (26"x4.0") tires provide exceptional power transfer and stability. Built for rugged terrain, this fat tire electric bike delivers traction and control for every adventure.

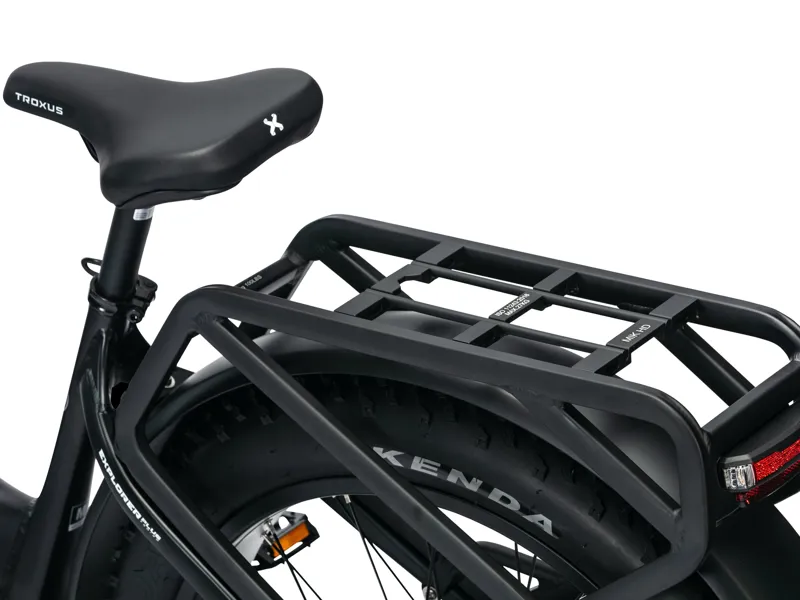

The heavy-duty, semi-integrated MIK-compatible rear rack keeps cargo secure and provides an ultra-stable ride. Capable of carrying up to 45kg (100 pounds) of gear or passengers, it is perfect for commuting, shopping, or weekend trips.

Features:

  • Max speed up to 45 km/h (28 MPH).
  • Range up to 145 km (90 miles) per charge.
  • 750W Bafang® Hub Motor.
  • 48V 20Ah (960Wh) battery with Samsung® cells.
  • Switchable Torque and Cadence Sensor Modes.
  • Shimano® 8-Speed Shifting.
  • Tektro® Hydraulic Disc Brakes for excellent stopping power and modulation.
  • Ultra-Durable 6061 Step-Thru Frame built for rugged use.
  • Heavy-duty, MIK-compatible rear rack with an integrated taillight and turn signals.
Technical Information
  • Motor
    Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque
  • Battery
    UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells
  • Throttle
    Thumb Throttle on Handlebar
  • Sensor
    Switchable Torque And Cadence Sensor Modes
  • Pedal assist
    0~5 Level Pedal Assist
  • Charger
    3A / 100-240V Input / 54.6V Output
  • Lights
    80 Lux Front Light, Rear Light w/ Turn & Hazard Signals
  • Controller
    48Vx22A/6V
  • Frame
    6061-T6 Aluminum Step-Thru Frame
  • Fork
    Front Suspension Fork, 90mm Travel
  • Chain
    KMC® 1/2"x3/32"
  • Crankset
    Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm

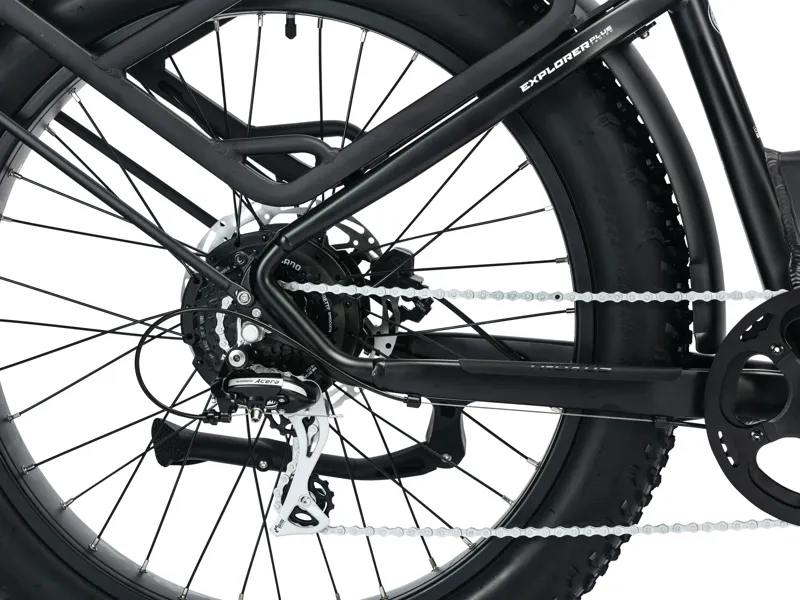

  • Rear derailleur
    Shimano® RD-M310-L, Altus, 8-Speed
  • Cassette
    Shimano® 8-Speed, 12-32T
  • Shifter
    Shimano® 8-Speed
  • Bottom bracket set
    Square Taper Sealed Bearings, Torque & Cadence Sensors Included
  • Tires
    KENDA® 26"x4.0", w/ Anti-Puncture K-Shield
  • Front hub
    Alloy, 36H, 135mm, 3/8" Axle
  • Rear hub

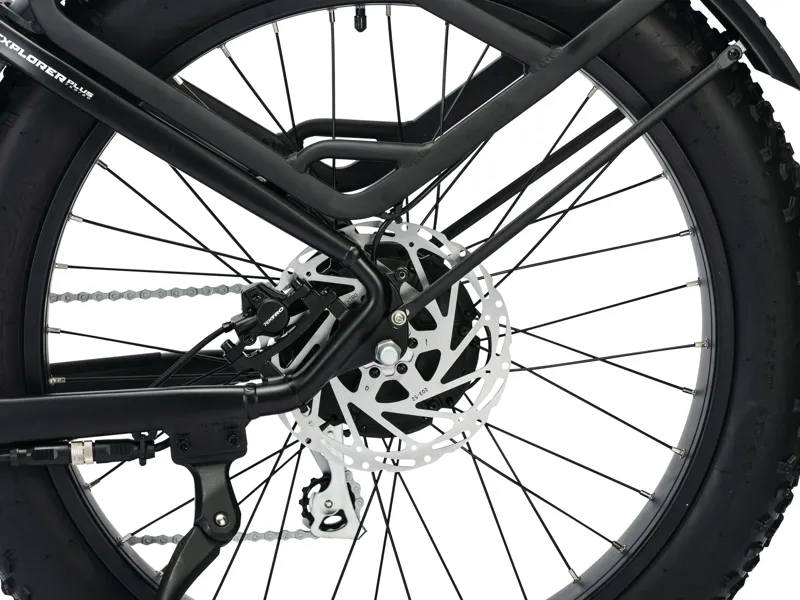

    Bafang® 48V 750W/ 28 MPH. 86Nm
  • Rims
    Alloy Single Wall Front / Double Wall Rear, 36H, 26"x4.0", w/ Eyelets
  • Spokes
    Stainless 13G. Front / 12G. Rear

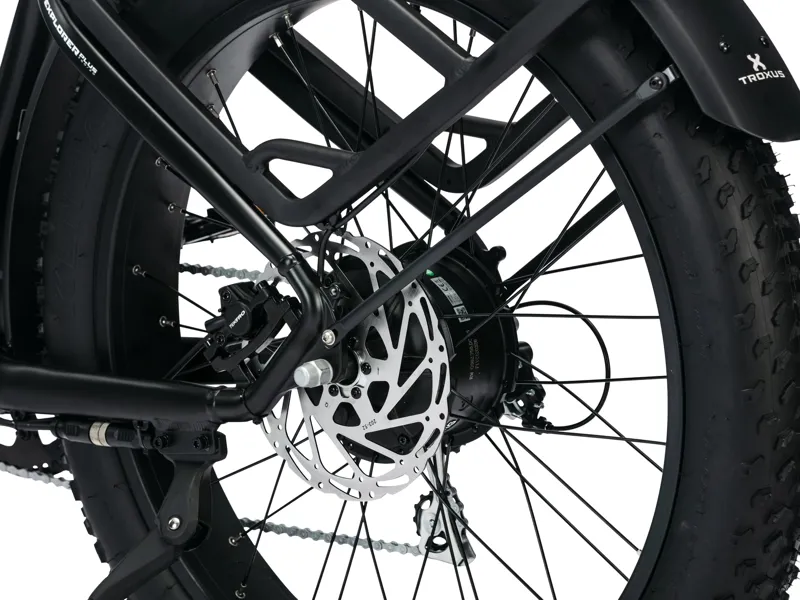

  • Brakes
    Tektro® Hydraulic, w/ Brake Sensors
  • Rotors
    203mm / 203mm
  • Saddle
    Troxus Comfort
  • Seat post
    Zoom® Alloy, 30.9x350mm, Adjustable
  • Seat-post clamp
    Alloy, 35mm w/ Quick Release
  • Stem
    Zoom® Alloy, Threadless, 1-1/8", Ext. 75mm, 28.6mm, 7-Degree Rise
  • Handlebar
    Zoom® Alloy 31.8mmx700mm Wide
  • Grips
    Ergonomic Comfort
  • Pedals
    9/16″ Alloy Platform
  • Headset
    Threadless, Locking Internal 1-1/8"
  • Max speed
    Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
  • Range
    Up To 90 Miles Per Charge
  • Weight limit
    Maximum Load: 400 lbs; Maximum Rear Rack Capacity: 100 lbs
  • Net weight
    83.8 lbs
  • Rack
    Semi-Integrated Alloy Rear Model/ MIK-Compatible Rear Rack
  • Fenders
    Alloy, 27.5"x4.0", Full coverage
  • Kickstand
    Adjustable Side Kickstand
  • Packaged
    Above All Accessories Are Included.
Sizing Information

Recommended Height Guide

Size Label S M
Recommended Height 5'0" - 5'5" 5'5" - 5'10"

Product Image

Troxus Explorer Plus Step-Thru Bike

Geometry Specifications (Step-Thru Model)

Measurement Type Small / 16.5" Medium / 18.0"
Model Step-Thru Step-Thru
Wheel Size 26x4.0" 26x4.0"
A - Seat Tube Length 419 457
B - Seat Tube Angle 71.5° 71°
C - Head Tube Length 145 145
D - Head Tube Angle 68° 68°
E - Effective Top Tube Length 609 625
F - Bottom Bracket Height 305 305
G - Bottom Bracket Drop 70 70
H - Chainstay Length 490 490
I - Fork Offset 46 46
J - Wheelbase 1163 1171
K - Frame Reach 383 392
L - Frame Stack 677 677
Fork Travel 90 90
Fork Height 525 525
